HotBox
Description
When we asked guides what tent we should make next, the overwhelming consensus was, "Make a lightweight 2P alpine bivy tent that actually works." So, we set off to make a tent with the following parameters: Lightweight, waterproof, handles condensation well, and fully freestanding with a small footprint so it can be wedged into rocky alpine bivy spots or dug into the side of snow fields. Finally, knowing that summit windows can take days to materialize, it had to be livable enough to spend more than a couple hours in without getting totally stir crazy.
We went with a double wall design because even the most breathable single-wall tents can't match the condensation management and versatility of a tried and true double-wall. We also added a WebTruss to boost the HotBox's strength-to-weight ratio, a whole bunch of pockets, and some functional ventilation.

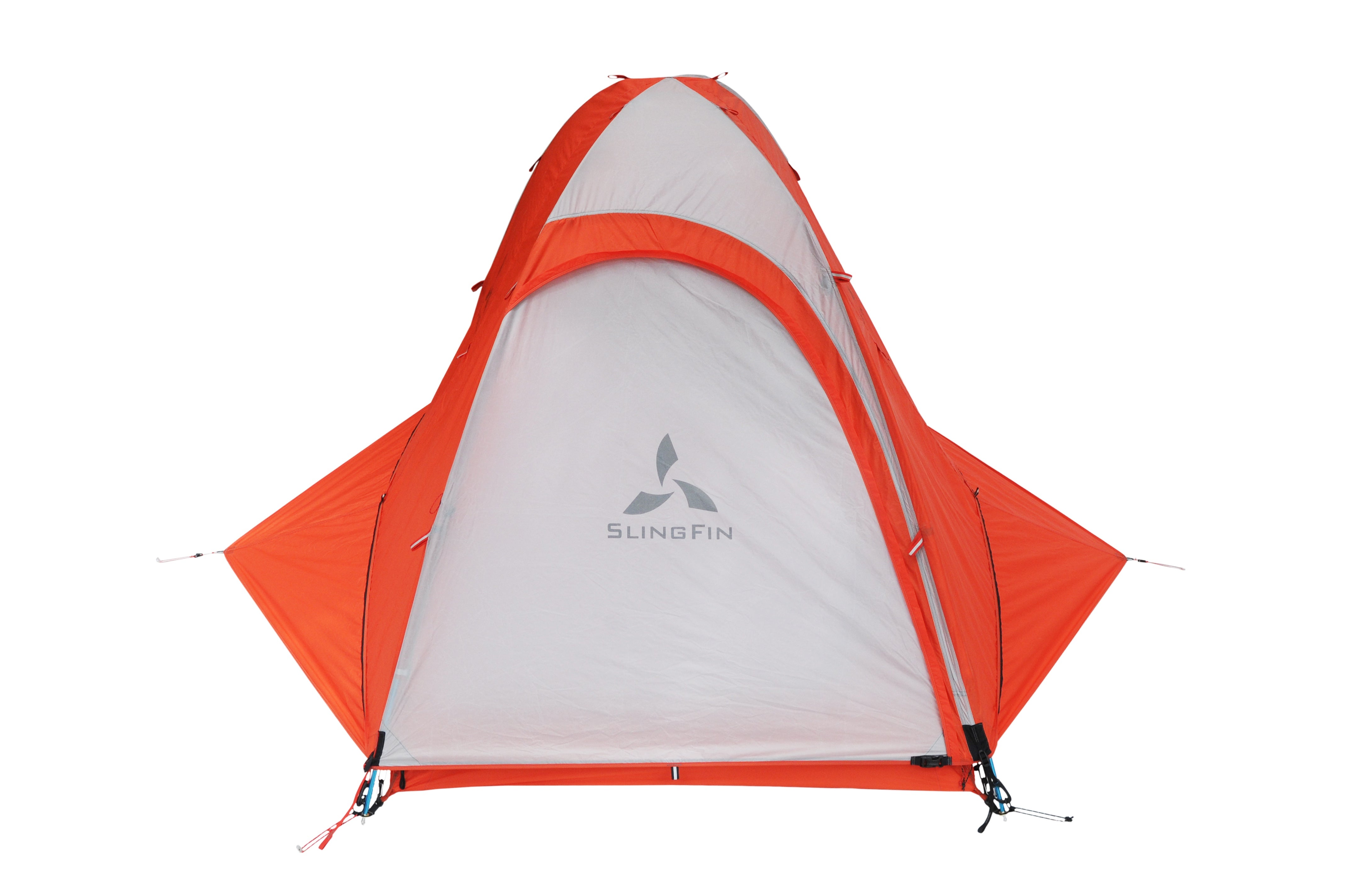

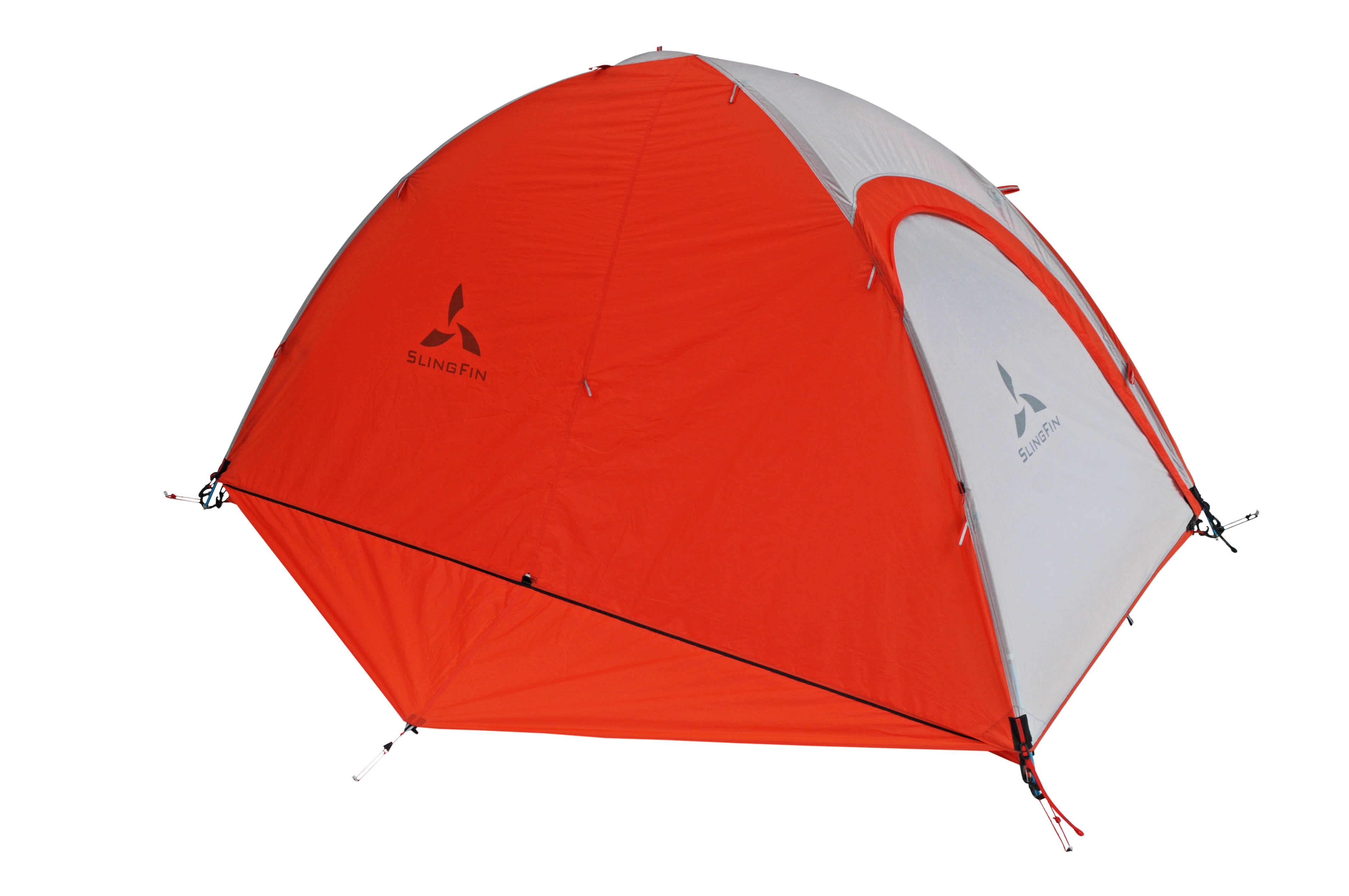

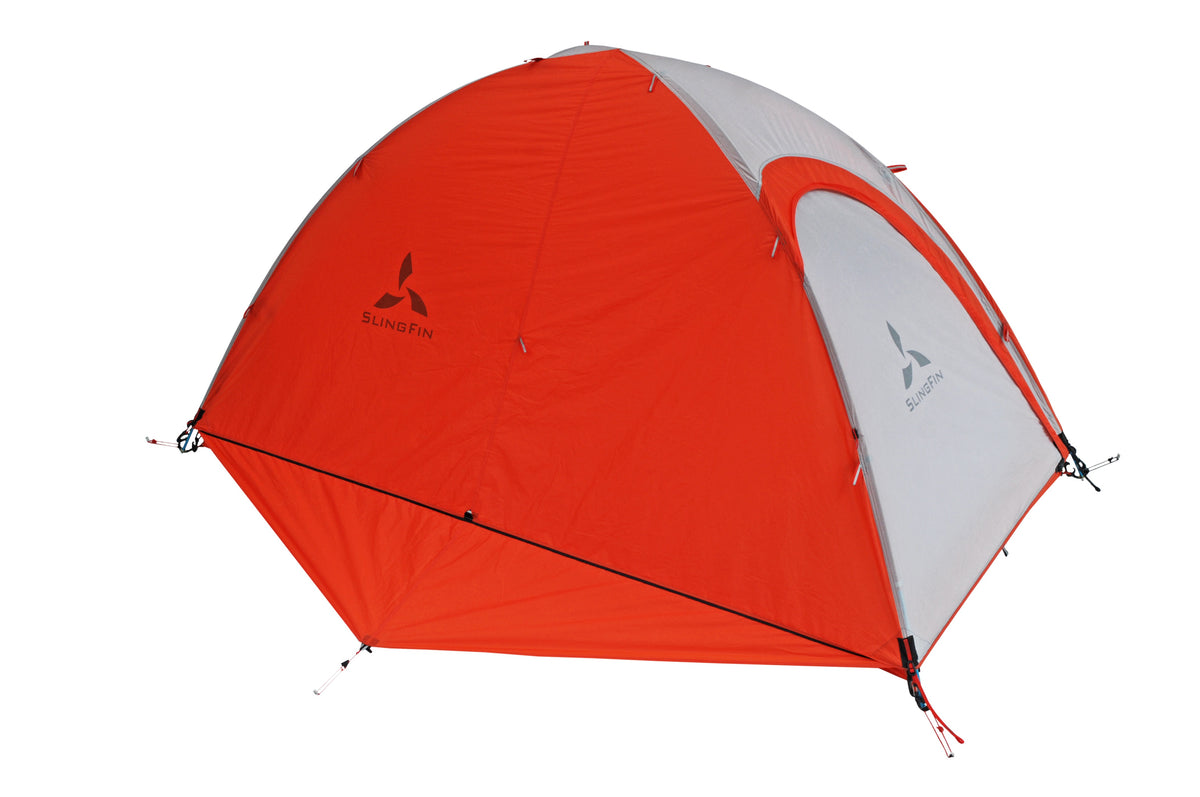

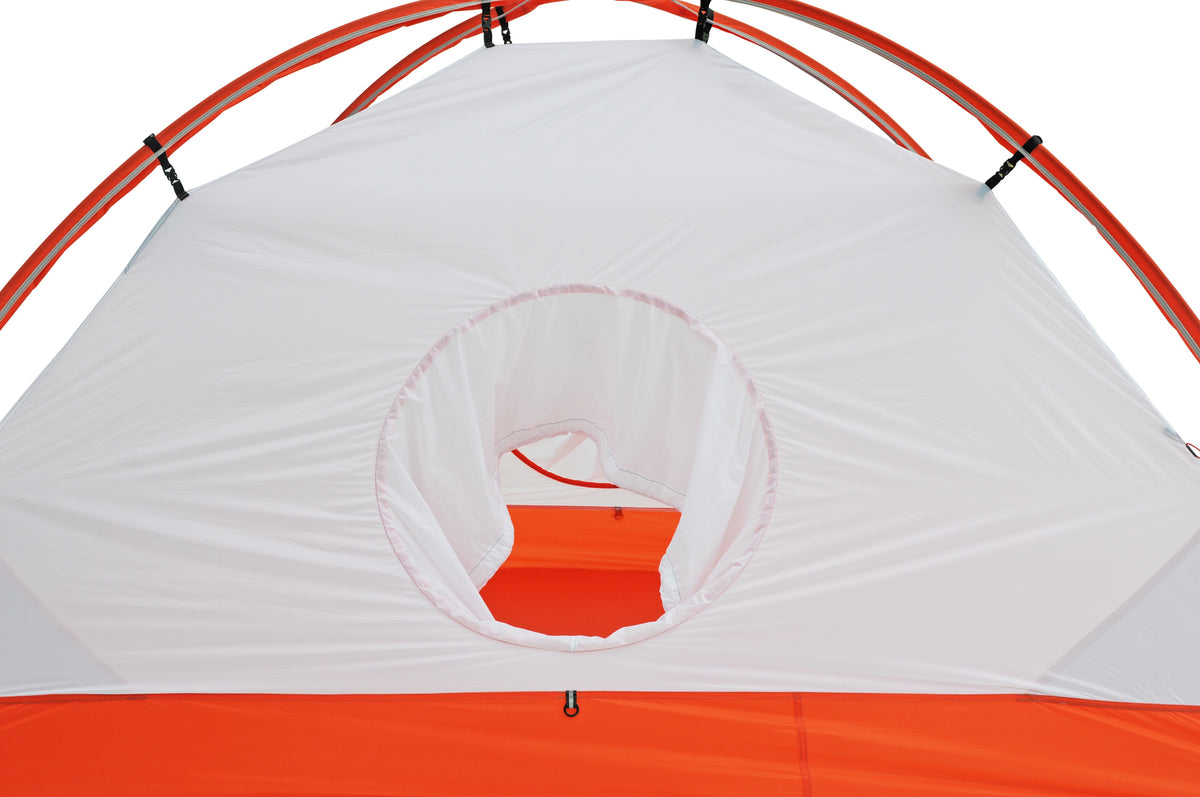

Perhaps the most distinctive feature of the HotBox is its novel gear storage system. The large drawstring vents on the sides of the tent body combined with the full-length snow flaps provide dry gear storage without obstructing the door or requiring any stake points. Toggle the point of the snow flap to the tent body, shove your pack out the vent, and you have a sheltered alcove for your gear that doesn't get in the way of the door, increase the tent's footprint, or require a stake.
Our integrated pitch design lets you connect the tent body to the flysheet via the WebTruss, allowing the tent to be pitched as a single unit, like a single-wall tent.
Add a through-vent, a mesh panel on the door, a rain gutter on the flysheet zipper, internal guylines, and our industry-leading build quality and fabrics, and you get a tent that's suitable for the approach as well as the summit push. Its ventilation and double-wall design mean it's even serviceable as a year-round backpacking tent.
Pick up a footprint to prolong the life of your HotBox's floor or set up the tent without the body.
If you want to save the maximum possible amount of weight, replace the tent body with the HotBox Tub Floor to turn your HotBox into a single-wall minimalist alpine machine with a minimum weight of only 2lb 2.7oz.
Features
- 2-person tent for minimalist alpine climbs and ski tours

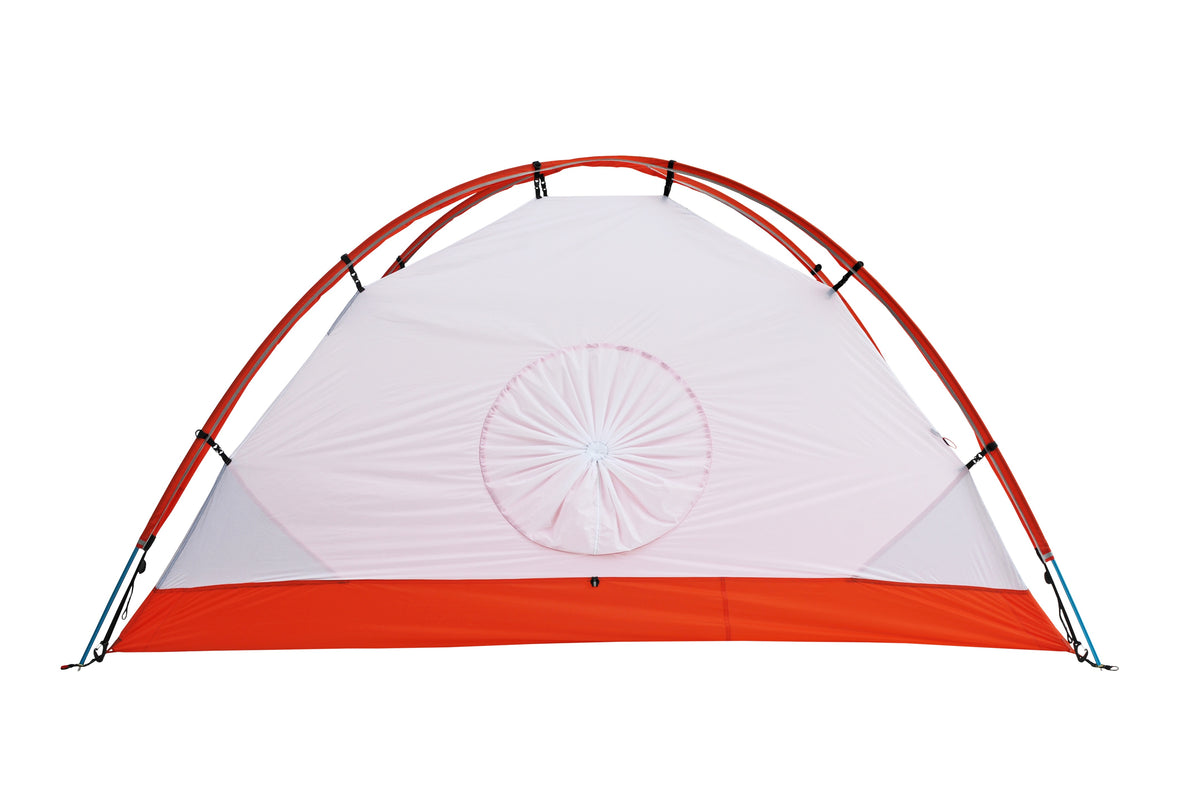

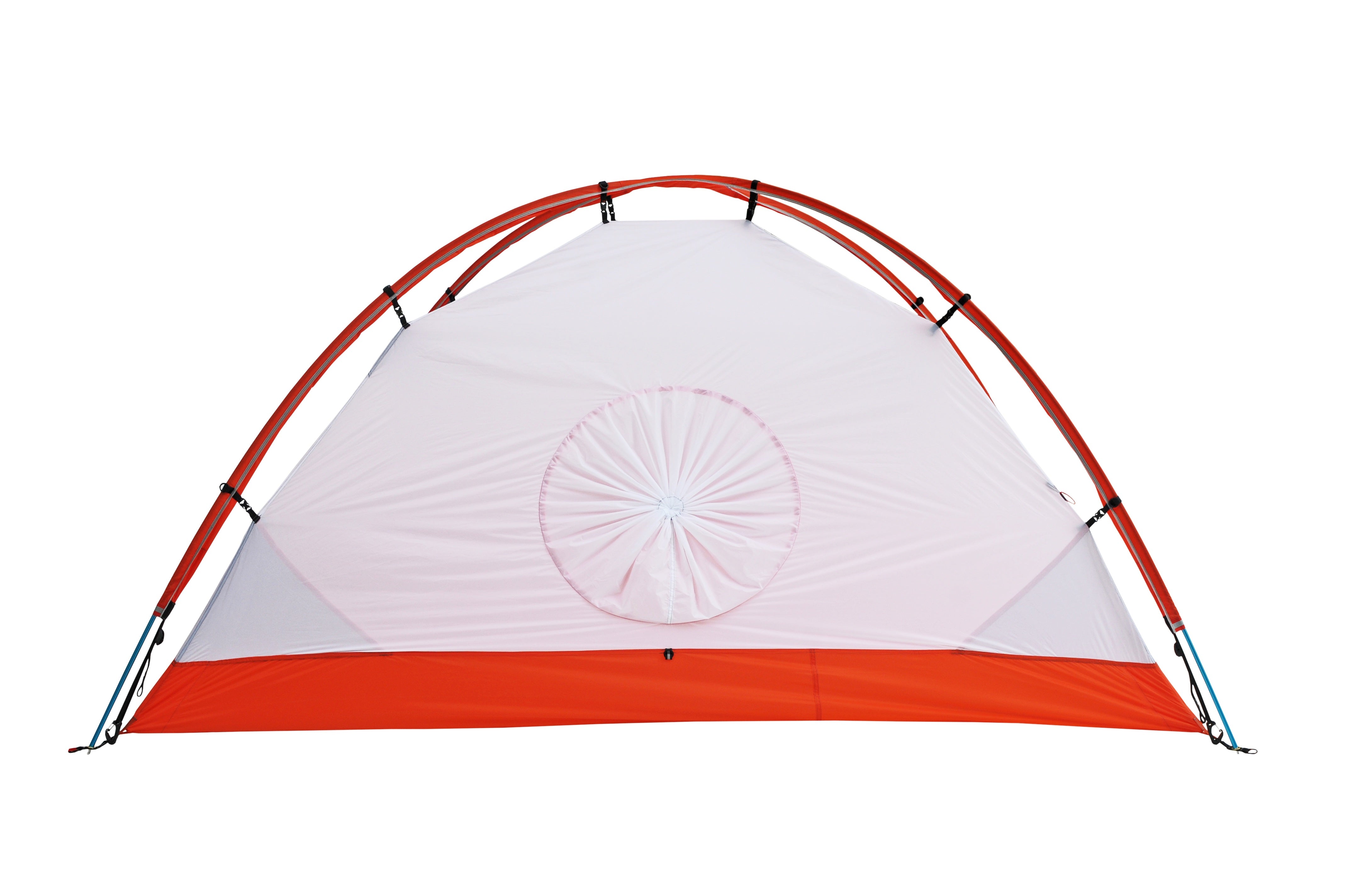

- Large side vents for access to gear storage area along sides of tent
- Fully freestanding
- Breathable ripstop body blocks wind, spindrift, dust, and sand

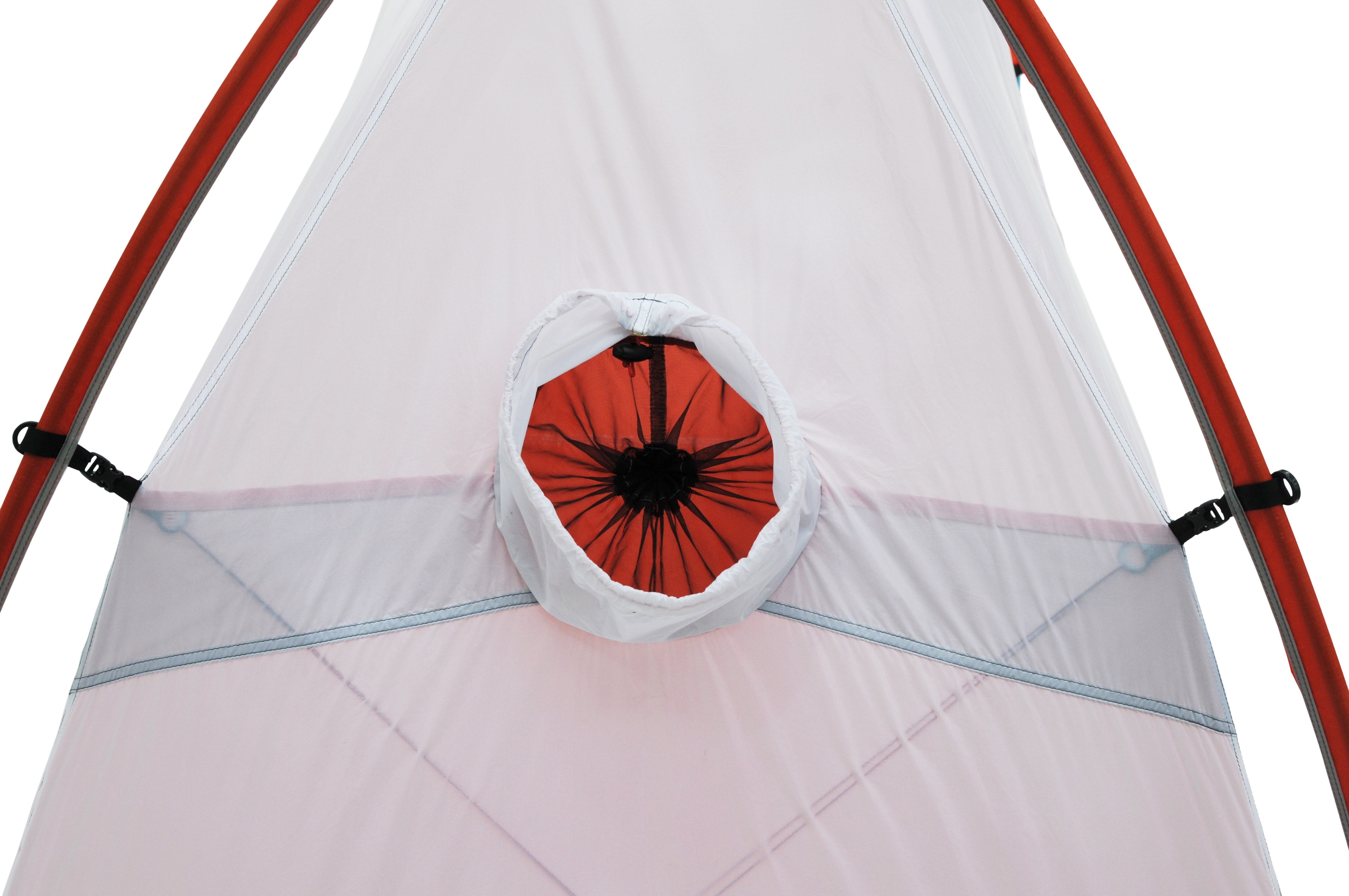

- Through-vents on fly and tent body facilitate airflow
- Tent body through-vent has separate mesh and ripstop layers for buggy conditions

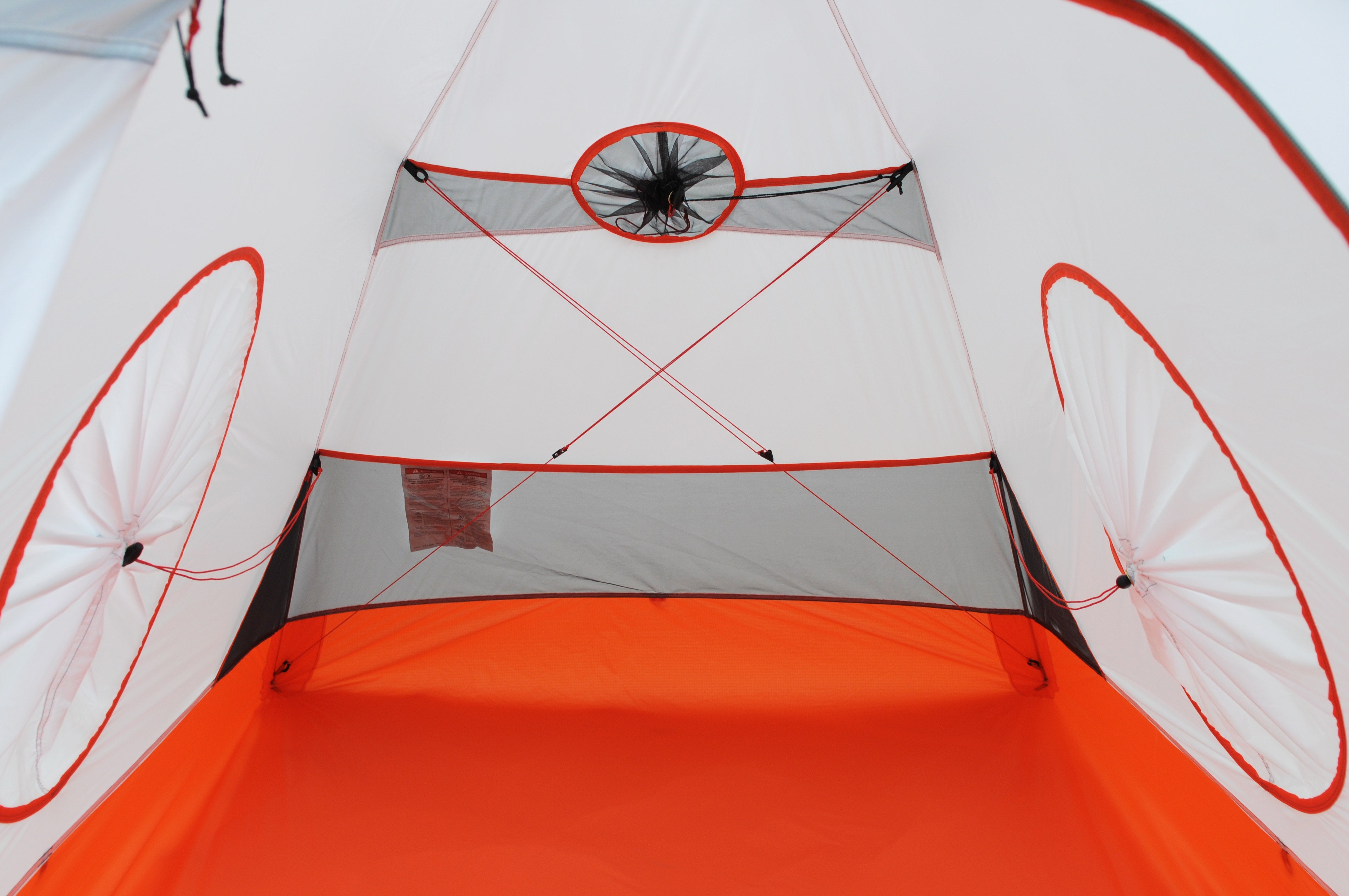

- 8 internal pockets for ample internal organization
- WebTruss adds strength and makes high-wind setup a breeze
- Rain gutter on fly zipper flap reduces drips during ingress and egress
- Internal guyline compatible (one set pre-installed)

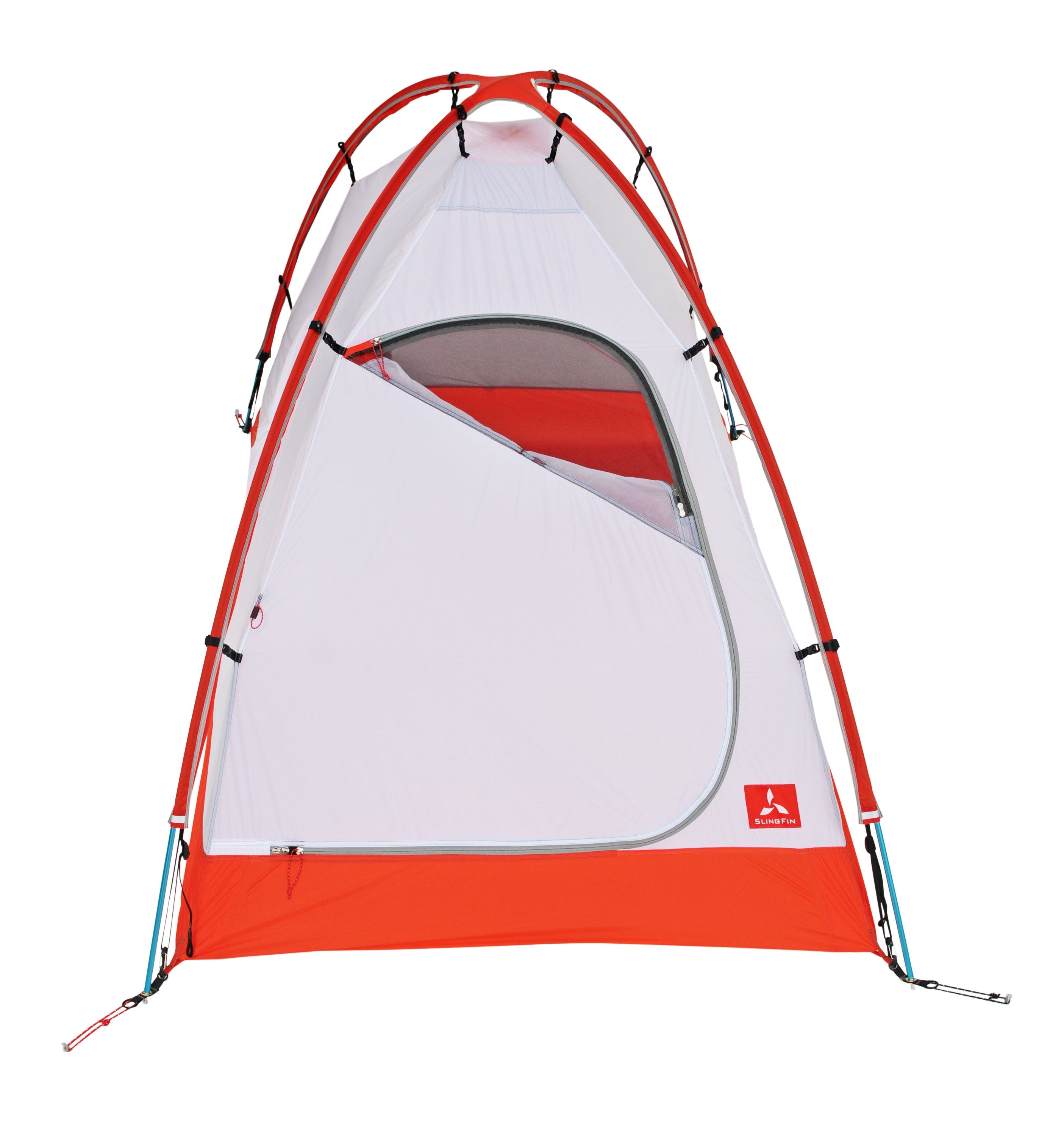

- Mesh door vent for venting even when it's buggy
- Toggles connect fly to poles at guy points for stability
- Integrated pitch design allows the fly and tent to be pitched simultaneously
- Internal ceiling o-rings for gear hanging
- Eight internal pockets for endless organizational potential
- WebTruss can be replaced with DAC twist clips (included) for additional weight savings
- 14 external guy points
- 4 perimeter pull-out loops
- 2 snow flaps with stake points
- No added FR chemicals
- Pre-installed spare zipper sliders prolong zipper lifespan
Specs
| Minimum Weight (with WebTruss) | 3lbs 7.2oz (1.56kg) |
| Minimum Weight (with included DAC Twist Clips) | 3lbs 4oz (1.47kg) |
| Packaged Weight | 4lbs 2oz (1.87kg) |
| Capacity | 2 |
| Floor Area | 26.8sq ft (2.49sq m) |
|
Interior Height
|
41" (104cm) |
|
Packed Size
|
6" x 19" (15cm x 48cm) |
| Pole Package Length | 17" (43cm) |
| Floor Length | 82" (208cm) |
| Floor Width | 52"/42" (132cm/107cm) (head/ foot) |
| Gear storage area depth (with snow flap staked out) | 20" (51cm) |
| Number of poles | 2 |
| Number of doors | 1 |
Materials
| Tent Body Fabric |
15D Nylon Ripstop DWR
|
| Floor Fabric | 20D Nylon Ripstop PE 1800mm |
| Fly Fabric | 20D Nylon Ripstop SIL/SIL 1500mm |
|
WebTruss Fabric
|
20D Nylon Ripstop SIL/SIL 1500mm |
| Poles | 2 DAC NFL 9.3mm |
| Zippers | YKK #5 reverse coil (flysheet/tent body door), YKK #4.5 coil (door vent) |
Included Accessories
| 14 DAC J-Stakes | 5.4oz (153g) |
| 14 orange reflective 2.5mm guylines (80" with tensioners) | 6.2oz (176g) |
| DAC Twist clips* (to replace WebTruss) | 1.6oz (46g) |
| Pole Repair Splint ( 13.2mm x 130mm) | 0.4oz (12g) |
*not necessary for normal use of the tent
Features
Specs and Dimensions
| Minimum Weight (with WebTruss) | 3lbs 7.2oz (1.56kg) |
|---|---|
| Minimum Weight (with included DAC Twist Clips) | 3lbs 4oz (1.47kg) |
| Packaged Weight | 4lbs 2oz (1.87kg) |
| Capacity | 2 |
| Floor Area | 26.8sq ft (2.49sq m) |
| Interior Height | 41" (104cm) |
| Packed Size | 6" x 19" (15cm x 48cm) |
| Pole Package Length | 17" (43cm) |
| Floor Length | 82" (208cm) |
| Floor Width | 52"/42" (132cm/107cm) (head/ foot) |
| Gear storage area depth (with snow flap staked out) | 20" (51cm) |
| Number of poles | 2 |
| Number of doors | 1 |
Materials
| Tent Body Fabric | 15D Nylon Ripstop DWR |
|---|---|
| Floor Fabric | 20D Nylon Ripstop PE 1800mm |
| Fly Fabric | 20D Nylon Ripstop SIL/SIL 1500mm |
| WebTruss Fabric | 20D Nylon Ripstop SIL/SIL 1500mm |
| Poles | 2 DAC NFL 9.3mm |
| Zippers | YKK #5 reverse coil (flysheet/tent body door), YKK #4.5 coil (door vent) |
SlingFin HotBox — Frequently Asked Questions
What is the HotBox designed for?
The HotBox is a minimalist alpine assault tent for human-powered alpine objectives. Think fast and light summit pushes, high-mileage ski traverses, or general four-season use with an ultralight kit. With no mandatory stake points and a compact footprint, it’s great for cramming onto small ledges or digging into snow fields. However, because the HotBox is a double-wall tent, it’s far more versatile than the single-wall tents more common in this category. It manages condensation well enough to use year-round and it’s even light enough to take backpacking.
Can I pitch the HotBox without the WebTruss?

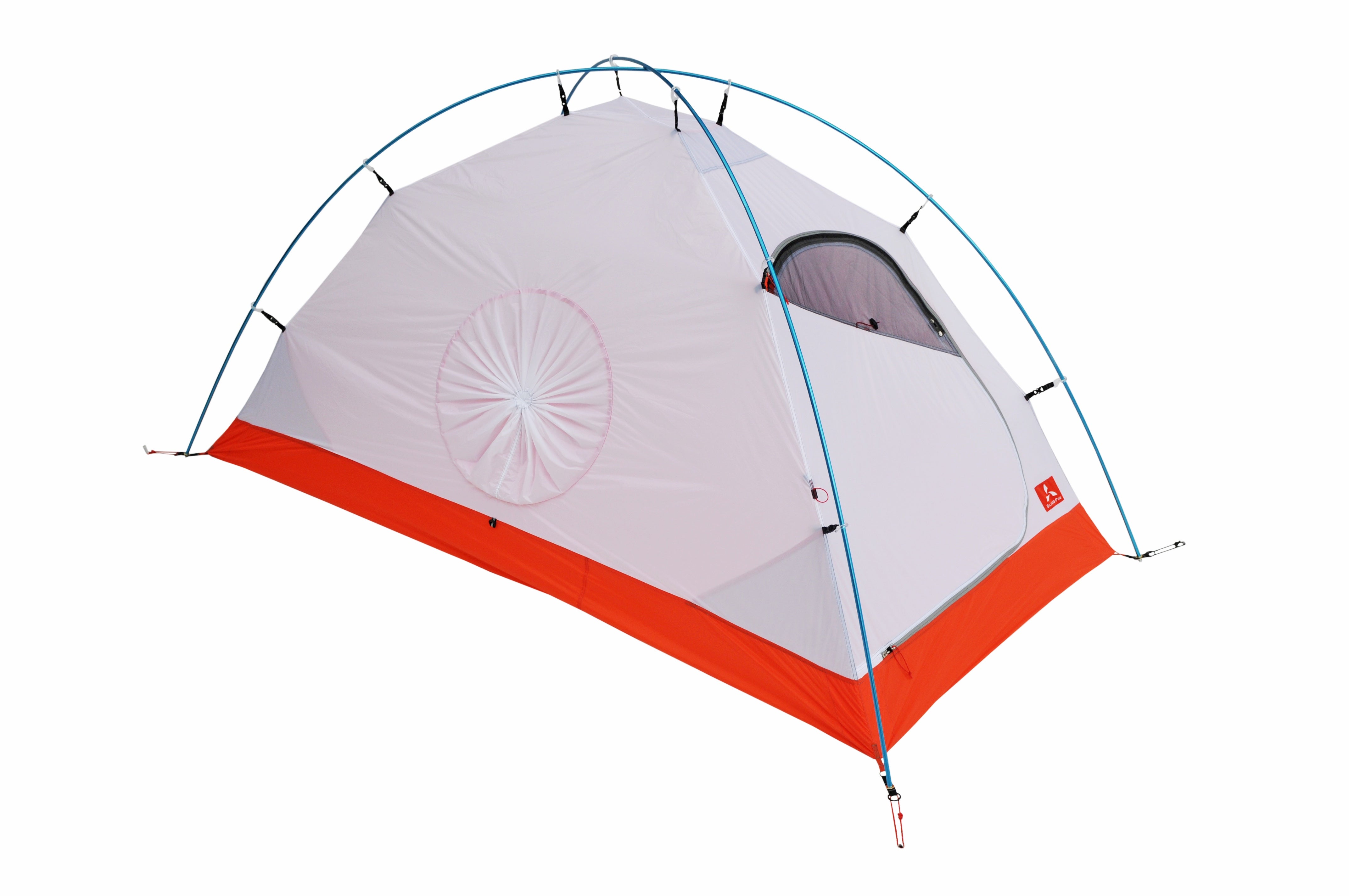

Yes, the HotBox comes with a set of tent pole clips from DAC that can be used in place of the WebTruss to save weight when the extra strength of the WebTruss isn’t needed.
Can the HotBox be used without the fly?

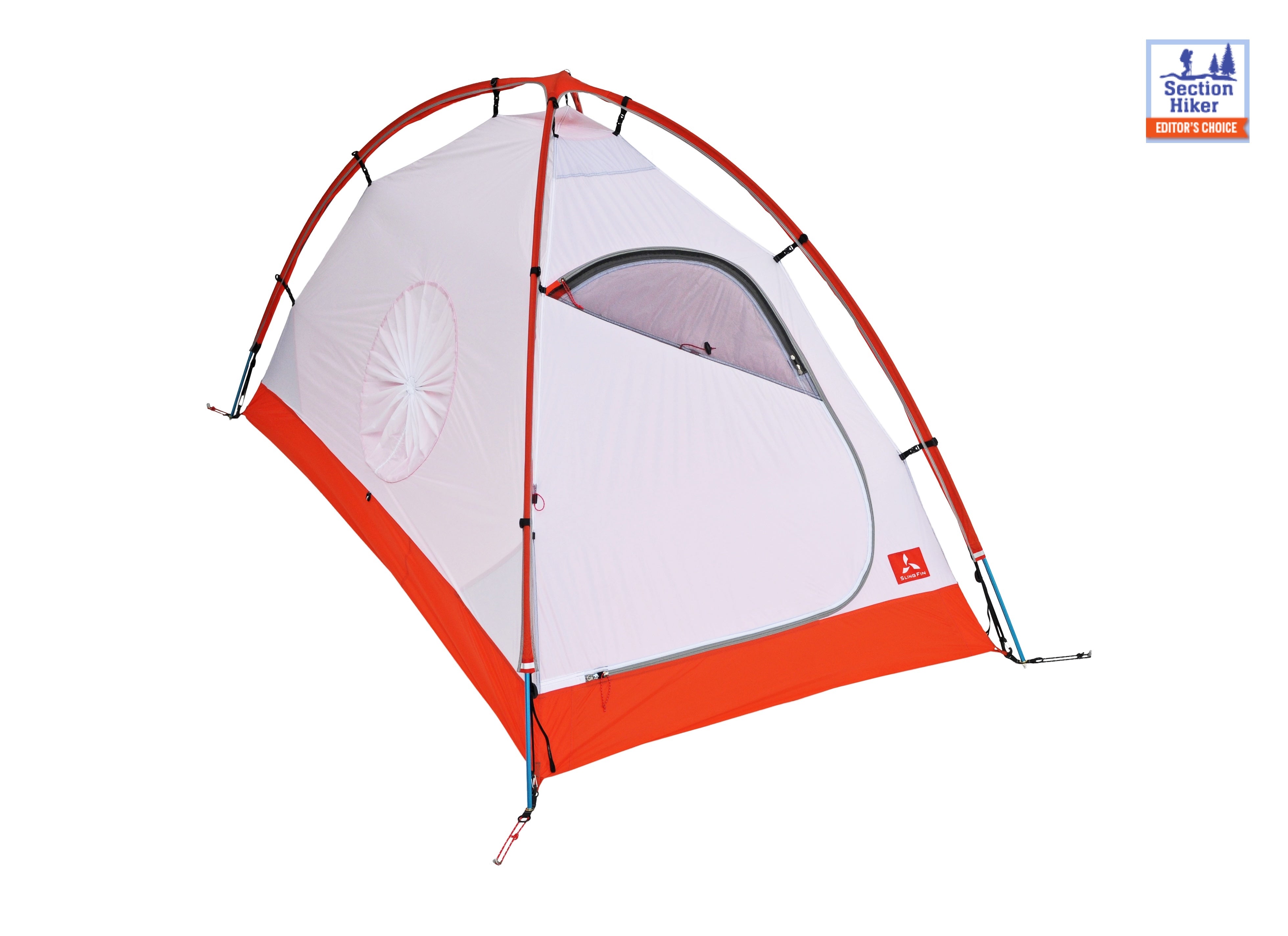

Yes, since the HotBox uses an external-fly design, you can easily remove the fly for ultralight summit pushes when you’re confident the temperature will remain below freezing and you won’t receive extreme snowfall.
What is the WebTruss, and how does it work?
The WebTruss makes our tents significantly stronger at a minimal weight penalty by reducing flex in the poles. It allows the user to tension the poles, locking them down and giving the CrossBow the strength of a much heavier tent. The WebTruss also enables easy high-wind setup by allowing the user to fully set up the poles in the WebTruss before attaching the tent body, minimizing the wind profile when the tent is at its most vulnerable as the poles are being inserted.
Can I get repair supplies and spare parts for the HotBox?
Yes! We are passionate about keeping our tents in the field as long as possible and have spare pole sections, repair fabric, and repair adhesive available on our website. Even if a specific part isn’t listed on our spare parts page we can almost always find the part you need. Just reach out to us and we’ll get you sorted out. Depending on inventory levels we are often able to sell individual components of the tent if you manage to wear something out or damage it beyond repair.
